Phantech Fillable Derenzo Phantoms

Fillable Derenzo Phantoms

“Derenzo” phantoms are used to characterize an imaging system’s resolution by measuring the FWHM of hole patterns with varying diameters and spacing. Holes within a size group are spaced at exactly 2D (twice the diameter) apart. Phantech Derenzo phantoms feature six different hole sizes arranged in triangles around the center of phantom. Phantech phantoms feature our patented Linear-Filling Technology, which greatly reduces the fill time to under ~10 seconds, ensures even filling with no bubbles, reduces the fill volume and radiation exposure, all while improving image quality by reducing background noise!

Contact Radnostix

Use the link below to contact us or call 1.208.524.5300

Contact Us

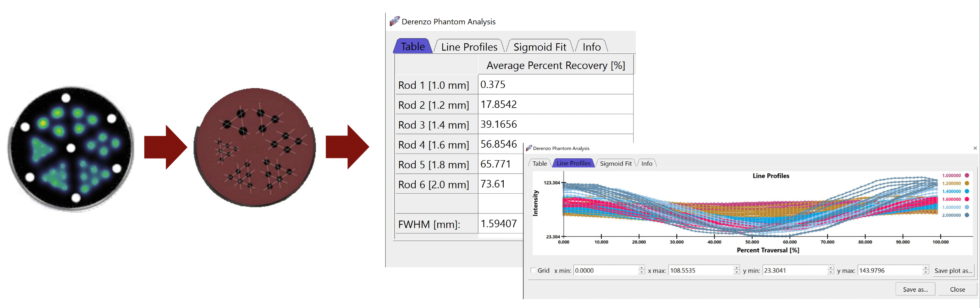

Automated Analysis with Imalytics Pre-Clinical (GREMSE-IT)
  1. Perform imaging scan using Phanqual phantom
  2. Load image file into Imalytics
  3. Select the phantom from the dropdown menu
  4. Generate and save report

We can customize our Derenzos Phantoms for you. The outer diameter, rod diameter, rod length and rod pattern can be tuned to your needs. Contact phanqual@radqual.com for custom requests.

  • System resolution characterization
  • Co-registration (PET, SPECT, CT, optical, MRI, X-ray, MPI)
  • Reconstruction optimization
  • Multi-modality applications
  • ​Flow measurements
  • Standardization
  • Image quality assessment
  • Training
  • Marketing
Product No.
Hot Rod Diameters (mm)
Outer Diameter (mm)
Rod Length (mm)
Approximate Fill Volume (mL)
D160712-GrIT
0.7, 0.8, 0.9, 1.0, 1.1, 1.2
16
7.5
0.25
D200515-GrIT
0.5, 0.6, 0.75, 1.0, 1.25, 1.5
20
8
0.35
D2005509-GrIT
0.55, 0.6, 0.65, 0.7, 0.8, 0.9
20
8
0.3
D270611-GrIT
0.6, 0.7, 0.8, 0.9, 1.0, 1.1
27
10
0.7
D2706125-GrIT
0.6, 0.7, 0.8, 0.9, 1.0, 1.25
27
10
0.7
D270711-GrIT
0.7, 0.75, 0.8, 0.85, 0.95, 1.1
27
10
0.5
D270712-GrIT
0.7, 0.8, 0.9, 1.0, 1.1, 1.2
27
10
0.6
D270715-GrIT
0.7, 0.8, 0.9, 1.0, 1.2, 1.5
27
10
0.7
D270825-GrIT
0.8, 1.0, 1.25, 1.5, 2.0, 2.5
27
10
0.85
D2708513-GrIT
0.85, 0.9, 0.95, 1.0, 1.1, 1.3
27
10
0.5
D271015-GrIT
1.0, 1.1, 1.2, 1.3, 1.4, 1.5
27
10
0.75
D271016-GrIT
1.0, 1.1, 1.2, 1.3, 1.4, 1.6
27
10
0.7
D271020-GrIT
1.0, 1.2, 1.4, 1.6, 1.8, 2.0
27
10
0.7
D271218-GrIT
1.2, 1.3, 1.4, 1.5, 1.6, 1.8
27
10
0.7
D271320-GrIT
1.3, 1.4, 1.5, 1.6, 1.8, 2.0
27
10
0.75
D271626-GrIT
1.6, 1.8, 2.0, 2.2, 2.4, 2.6
27
12
1.4
D401626-GrIT
1.6, 1.8, 2.0, 2.2, 2.4, 2.6
40
12
2.1
D652045-GrIT
2.0, 2.5, 3.0, 3.5. 4.0, 4.5
65
15
6.94

*Activity levels are customizable. Additional isotope options available.
