EBS point β sources

EBS point β sources

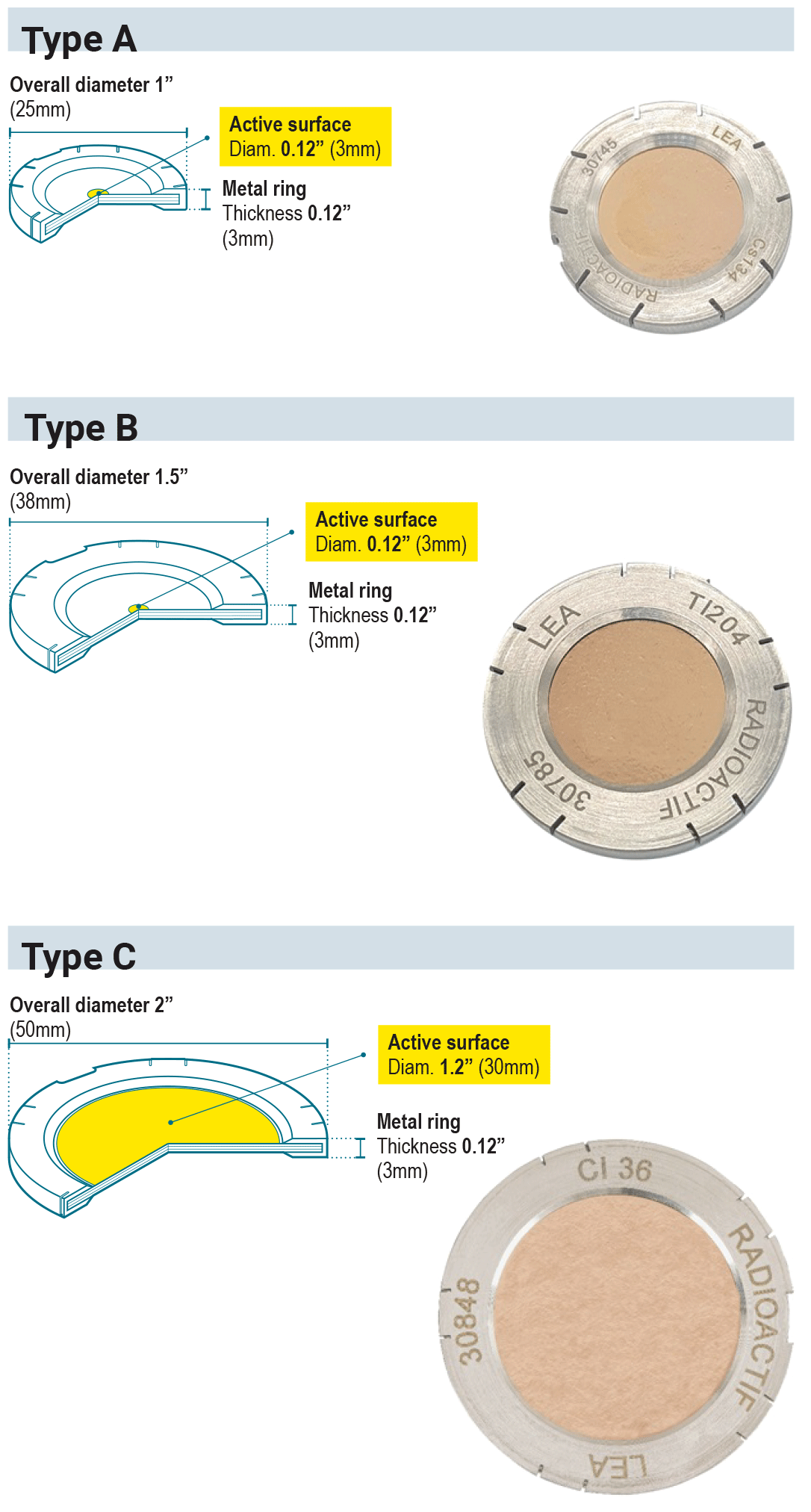

Beta point sources (EBS) Radionuclides are deposited between two hotsealed polyester foils (approximately 75μm thick each). Each face of the source is gold vacuumcoated for optimum measurement efficiency. They are then mounted in a steel ring.

Radiological characteristics of the sources are measured with a calibrated gas flow proportional counter.

Production Range

Catalog References
Custom/On Request
Active Diameter
3 mm • 0.12 in
30 mm • 1.2 in
From 3 to 30 mm
From 0.12 to 1.2 in
External Diameter
25 mm • 1 in
38 mm • 1.5 in
50 mm • 2 in
From 25 to 60 mm
From 1 to 2.4 in
Activity
80 Bq • 0.002 μCi
3000 Bq • 0.08 μCi
From 50 to 4 kBq
From 0.001 to 8.1 μCi
Radionuclide
Cl-36, Co-60, Cs-134, Cs-137, Na-22, Pm147, Sr-89, Sr-90 + Y-90, Tl-204, Tc-99
P-32, S-35, Ni-63, I-129

Reference/Product No.

Radionuclide
4π sr beta flux*
k=2 measurement uncertainty*
Equivalent activity
Reference/Product No.
Cl-36
80 | β.s-1
3000 | β.s-1
≤ 1.5%
≤ 1.5%
0.08 kBq • 0.002 μCi
3 kBq • 0.08 μCi
CL36 EBS [Type] 20
CL36 EBS [Type] 30
Co-60
80 | β.s-1
3000 | β.s-1
≤ 1.5%
≤ 1.5%
0.08 kBq • 0.002 μCi
3 kBq • 0.08 μCi
CO60 EBS [Type] 20
CO60 EBS [Type] 30
Cs-134
80 | β.s-1
3000 | β.s-1
≤ 1.5%
≤ 1.5%
0.08 kBq • 0.002 μCi
3 kBq • 0.08 μCi
CS134 EBS [Type] 20
CS134 EBS [Type] 30
Cs-137
80 | β.s-1
3000 | β.s-1
≤ 1.5%
≤ 1.5%
0.08 kBq • 0.002 μCi
3 kBq • 0.08 μCi
CS137 EBS [Type] 20
CS137 EBS [Type] 30
Na-22
80 | β.s-1
3000 | β.s-1
≤ 1.5%
≤ 1.5%
0.08 kBq • 0.002 μCi
3 kBq • 0.08 μCi
NA22 EBS [Type] 20
NA22 EBS [Type] 30
Pm-147
80 | β.s-1
3000 | β.s-1
≤ 1.5%
≤ 1.5%
0.08 kBq • 0.002 μCi
3 kBq • 0.08 μCi
PM147 EBS [Type] 20
PM147 EBS [Type] 30
Sr-89
80 | β.s-1
3000 | β.s-1
≤ 1.5%
≤ 1.5%
0.08 kBq • 0.002 μCi
3 kBq • 0.08 μCi
SR89 EBS [Type] 20
SR89 EBS [Type] 30
Sr-90 + Y-90
80 | β.s-1
3000 | β.s-1
≤ 1.5%
≤ 1.5%
0.08 kBq • 0.002 μCi
3 kBq • 0.08 μCi
SR90 EBS [Type] 20
SR90 EBS [Type] 30
Tl-204
80 | β.s-1
3000 | β.s-1
≤ 1.5%
≤ 1.5%
0.08 kBq • 0.002 μCi
3 kBq • 0.08 μCi
TL204 EBS [Type] 20
TL204 EBS [Type] 30
Tc-99
80 | β.s-1
3000 | β.s-1
≤ 1.5%
≤ 1.5%
0.08 kBq • 0.002 μCi
3 kBq • 0.08 μCi
Tc99 EBS [Type] 20
Tc99 EBS [Type] 30

Standard manufacturing tolerance: ± 30%
IAEA Category: 5 • ISO2919 Classification: C11111

*Under COFRAC accreditation. Scope N°2-6386 available at www.cofrac.fr or upon request.

How to compose reference/product no.:

Replace [Type] by the letter A, B or C according to the required geometry. For example : TL204 EBS A 30.

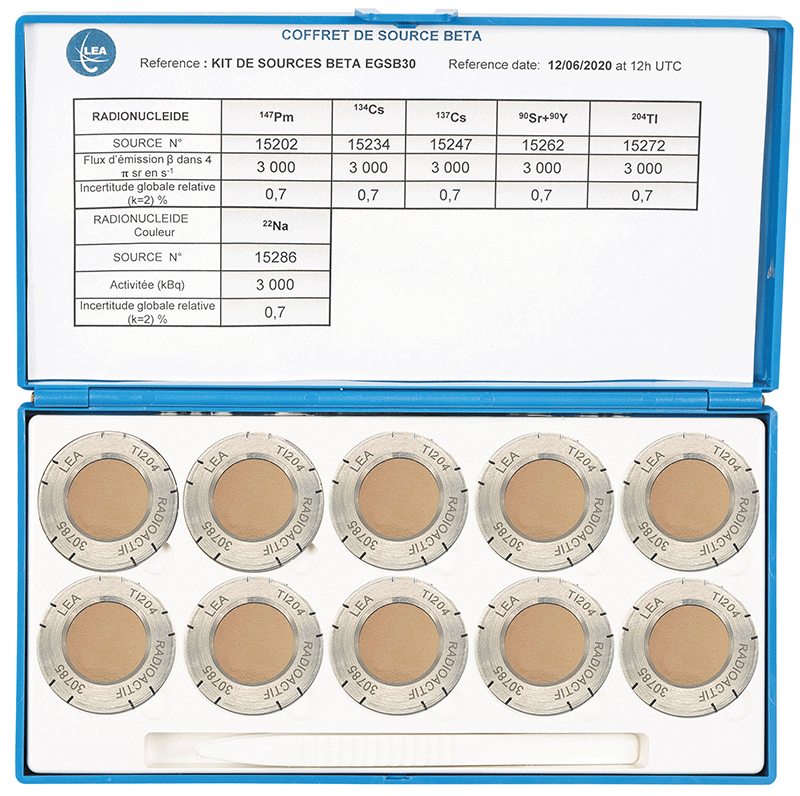

Beta Source Kit

Kits Available

EBS A and EBS B sources are also available in kit form. Radionuclides supplied are Pm-147, Cs-134, Cs-137, Sr-90+Y-90, Tl-204 and Na-22 with an activity of 0.002 μCi (80 Bq) or 0.08 μCi (3 000 Bq). Other activities of EBS sources are available on request.
